a1 medical GmbH was founded in 2012 and is a specialist for the development, production and distribution of surgical and microsurgical instruments for ophthalmology, on the highest quality level.
The product range, which includes over 3,000 items, includes: numerous specialties as well as design and product developments with unique selling points, especially in the field of keratoplasty.
The CTS – Cornea Transplant System in combination with the instrument developments for DMEK and DALK make it possible to present this product line as “Keratoplasty by a1 medical”.
a1 medical GmbH is also the first company in the field of ophthalmoloy, which has been certified according to MDR already by April 2021.
Over 3,000 items
The product range of a1 medical GmbH currently includes over 3,000 items. The range consists of reusable surgical instruments made of stainless steel (a small selection of titanium), Made in Germany, with a lifetime warranty, UDI-conform, numerous product specialties, product features and product developments, of which all are manufactured at the highest quality level. The products of a1 medical GmbH not only meet and exceed the expectations of numerous customers around the world, but also set new trends and standards.
Browse through the catalogue and/or download your copy:
Product Specialities

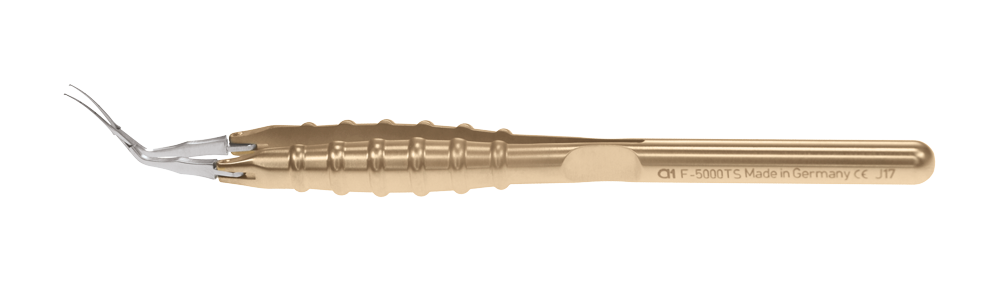

SIGNUM MICS Forceps
The reason for developing and building the SIGNUM MICS Forceps’ is quite easy. Most of the surgeons were not satisfied with the completely made of titanium, articulated capsulorhexis forceps’. They deform too fast. For this reason we have developed the SIGNUM MICS Forceps’ with a titanium handle AND stainless steel tips.
The name, SIGNUM, is the result of a mathematical rule.
– x – = +
This mathematical rule is called in latin SIGNUM REGOLATE, which was the basis for the name of the forceps’.
A handle made of stainless steel would have a negative influence by being too heave.
That is why we are using titanium on the handles.
Tips made of titanium would have the negative effect of being too flexlible, sensitive and deform more easly. That is why we are using stainless steel on the tips.
Eliminating two negativities result in the SIGNUM MICS FORCEPS’

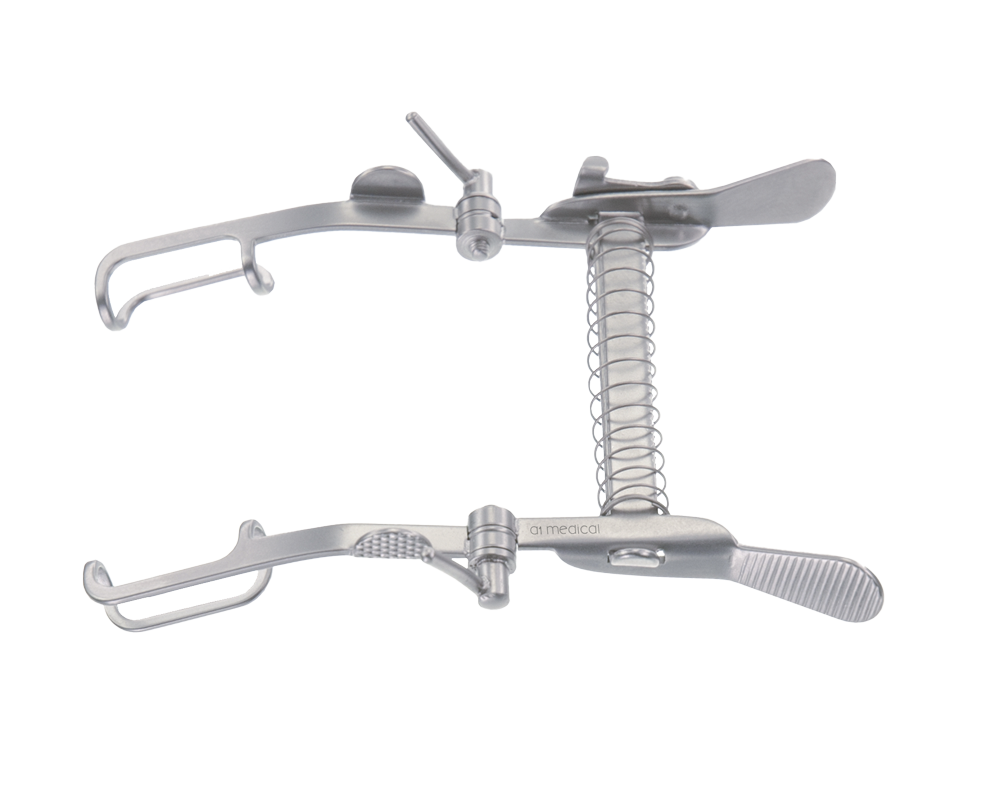

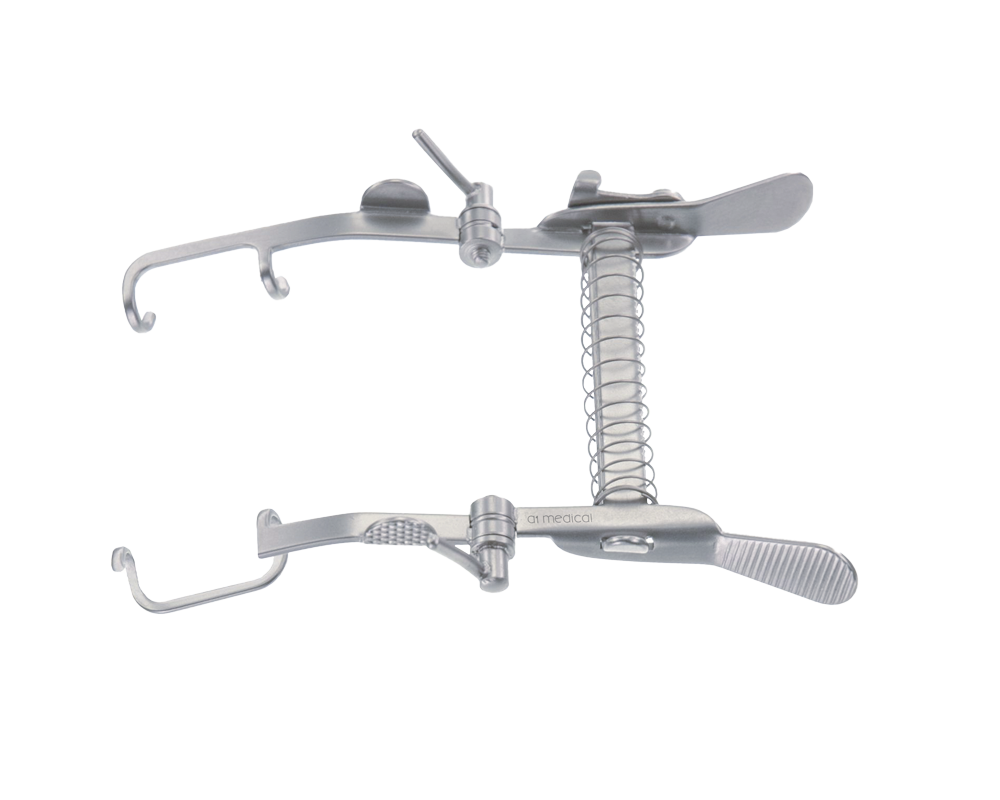

KRUMEICH SPECULUM
The speculum according to Dr. Krumeich is the result of a recurring question from the market, whether we have eyelid retractors with different angles. The Krumeich speculum has adjustable arms and can be used both temporally and nasally and can be perfectly adapted to the shape of the patient’s face.
MOD. KRUMEICH SPECULUM
Corresponds to the Krumeich speculum, but with modified valves.
The Gel Stent Applicator can not stick to the inferior valve-bridge during application, especially when inserting the applicator. The speculum can be removed shortly after the application, as the superior valve-bridge can not exert any pressure on the bulbus when removing the speculum and thereby not delocalize the stent out of his position.

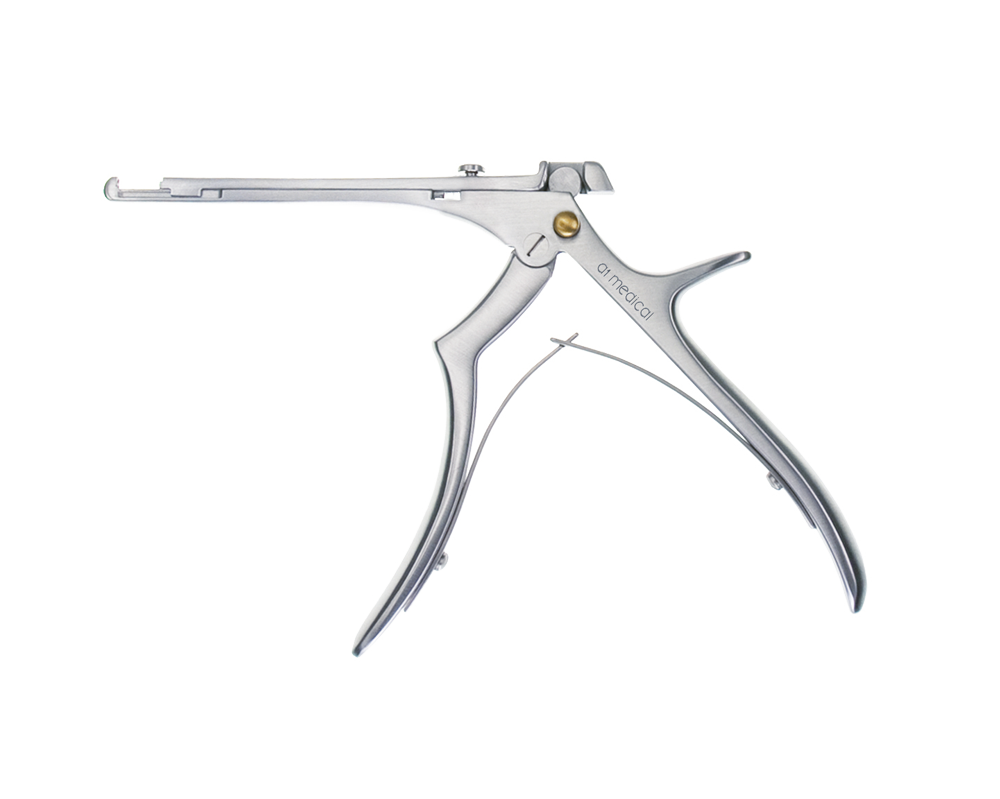

SEMI-DETACHABLE PUNCH
The shortest semi-detachable Punch on the market for the conventional lacrimal sac surgery.
The Punches have
- a working length of 11.0 cm
- a punching angle of 90°
- an ejector built into the shaft
- specially sharpened tips for less force and more efficiency and are available from 1 – 6 mm of punching diameter.
Semi-Detachable shaft for a better, perfect and optimal maintenance of the instrument. All angles and lumen are easily reachable.
Easy open and close system.

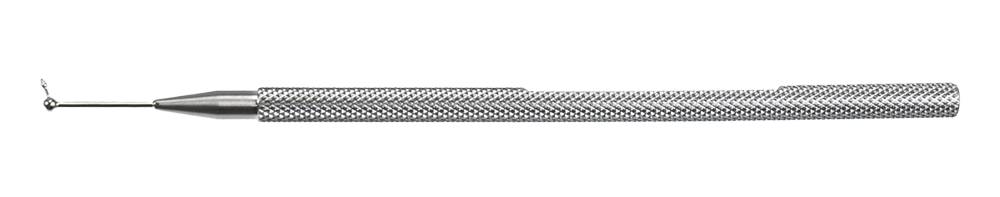

VERA-HOOK
The Vera Hook provides easy eye fixation and manipulation through a standard side port incision during Gel Stent Implantation.
The small cone in the front of the Vera Hook enables an easy and safe entry into the side port incision and provides holding resistance to inhibit the instrument from slipping out. A 1.8mm ball towards the back end prevents the full instrument from entering the eye through a 0.9mm side port incision while allowing rotation to any angle to accommodate various holding positions during Gel Stent Implantation.
KRETZ ENCLAVATION INSTRUMENTS
For the enclavation of Iris-Fixated Intraocular Lenses.
Product Features

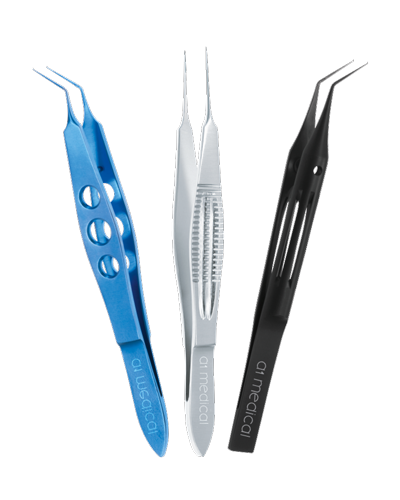

LARGEST SELECTION OF DIFFERENT HANDLE DESIGNS
a1 medical has the biggest variety of most common handle designs for forceps’, manipulators, hooks, spatulas, needle-holders and scissors. Customers have the freedom to choose between handle designs and rarely have to give up a model they are used to by simply changing just the brand they are used to.

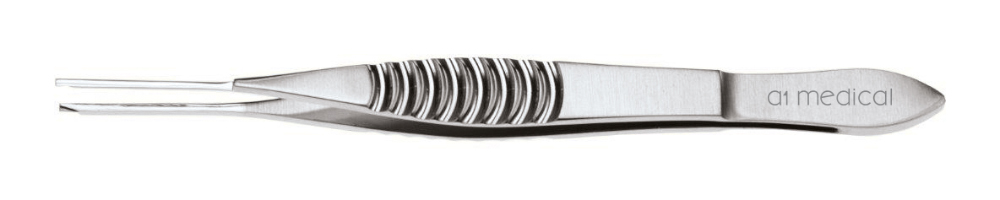

F-6000
That model, by the way, is a IOL loading forceps for Monarch cartridges

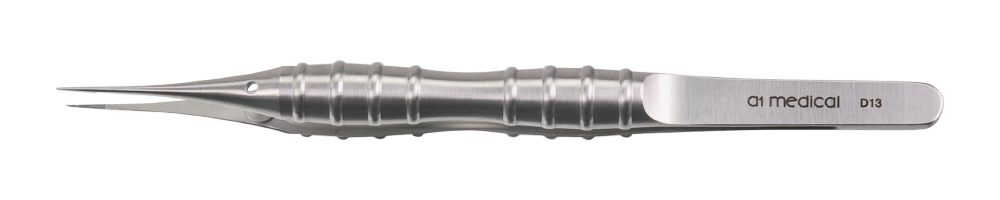

ERGOGRIP FORCEPS’ AND NEEDLE HOLDERS
a1 medical has, besides the biggest choice of different forceps’ with the most common handle designs, also own handle designs, such as for
- Round and Flat Handles for Forceps
- Round Handles for Needle Holders
The Round Handle Design is called Ultra Light Ergo Grip and has the following advantages:
… provides perfect balance during surgery
… ergonomic
… excellent grip
… easy to maintain
… saves costs, as it is nearly as light as titanium
The Flat Handle Design is called SMILE Grip and provides, due to the smiles on the handle a perfect Grip.

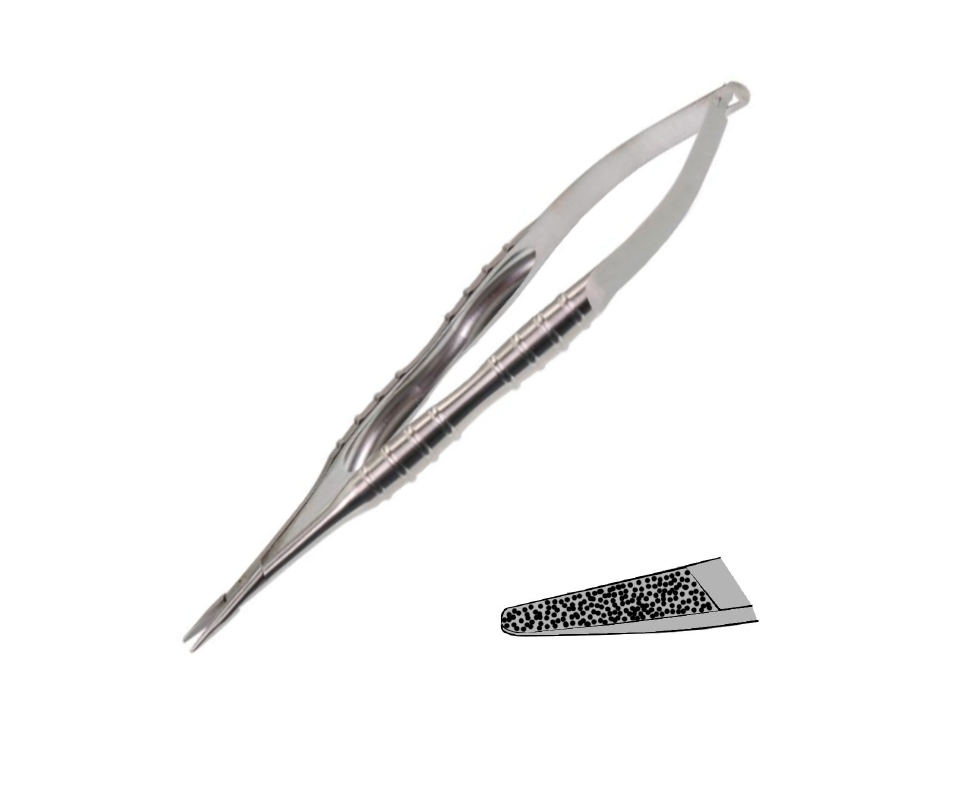

TC-COATING
When coated with tungsten carbide, tips of instruments last significantly longer since tungsten carbide is much harder than stainless steel.
This allows a non-traumatic and save handling of delicate tissue, vessels and sutures.
a1 medical is providing the TC Coated tips only on Forceps’ and Needle Holders with our own handle design, the Ultra Light Ergo Grip handles.

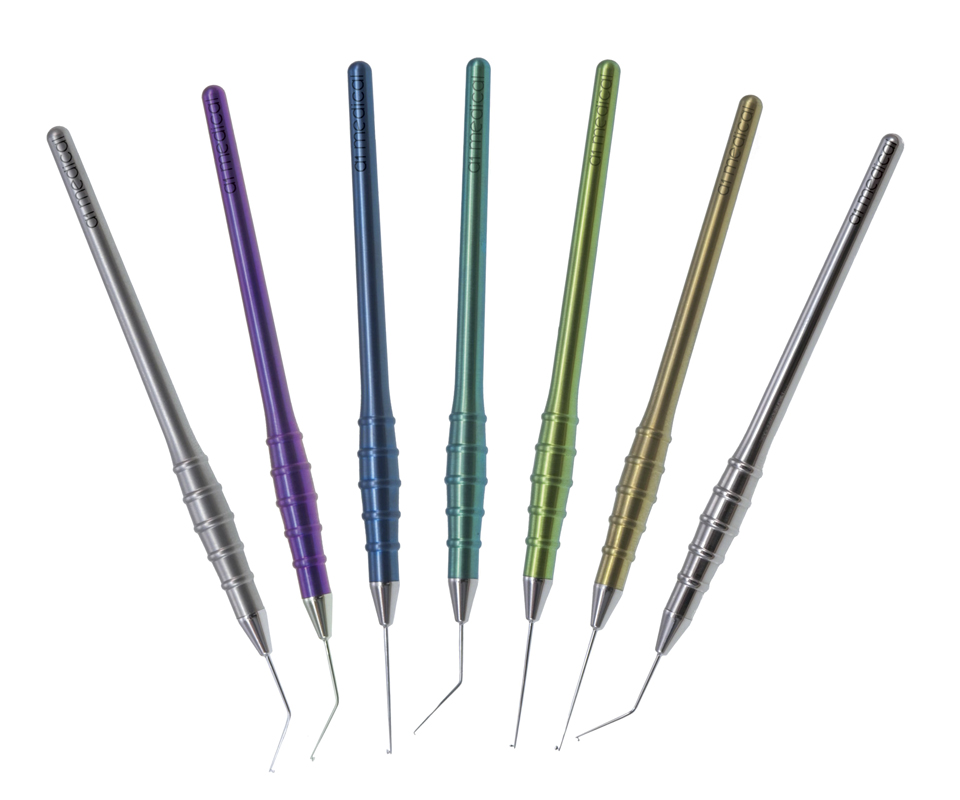

TS-LINE PRODUCTS
Our own handle designs for manipulators, hooks, spatulas, is combining Titanium Handles with working tips made of Stainless Steel. TS-Line (TS stands for Titanium and Stainless Steel)
The handles for single- and double-hook-systems are available in 5 different colours, which are:
- Green
- Yellow
- Blue
- Magenta
- Neutral
The tips are changeable, so it is at the same time unique, modern and economical,
because only the tip has to be replaced.

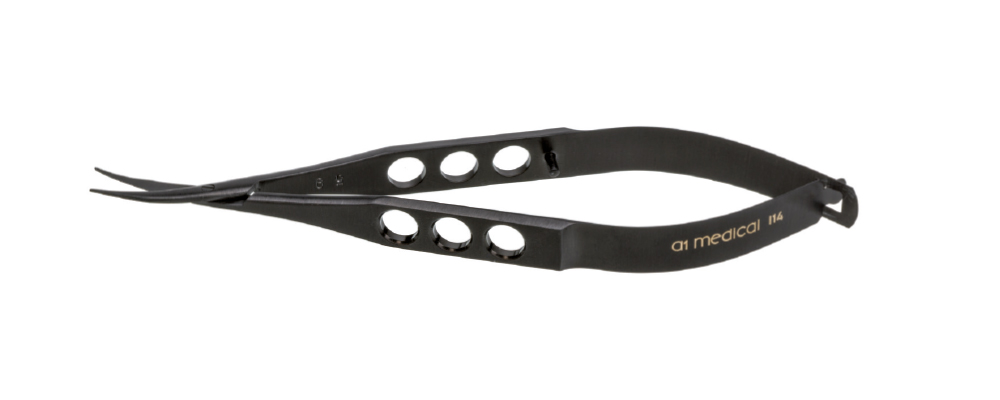

CERAMIC COATING
a1 medical if offering the largest range of Instruments with Ceramic Coating in he filed of Ophthalmology.
The coating consists of AlTiN, and is giving the products …
- a 10 times higher surface hardness
- a higher resistance against mechanical and chemical stress
- reduced reflections of the microscope light
- better sliding properties
- a higher resistance against corrosion
- easier maintenance
DATA-MATRIX-CODE
a1 medical is labelling the instruments strictly by Laser Marking.
The Data Matrix Code is …
- GS1-based
- UDI-conform (Unique Device Identification)
- and including the humanly readable version
The Data Matrix Code is lasered on the instruments as a standard since 2017.
On request any customer request can be labelled on the instrument.
Our standard as well as any additional labelling is just limited by the available space on the instrument.

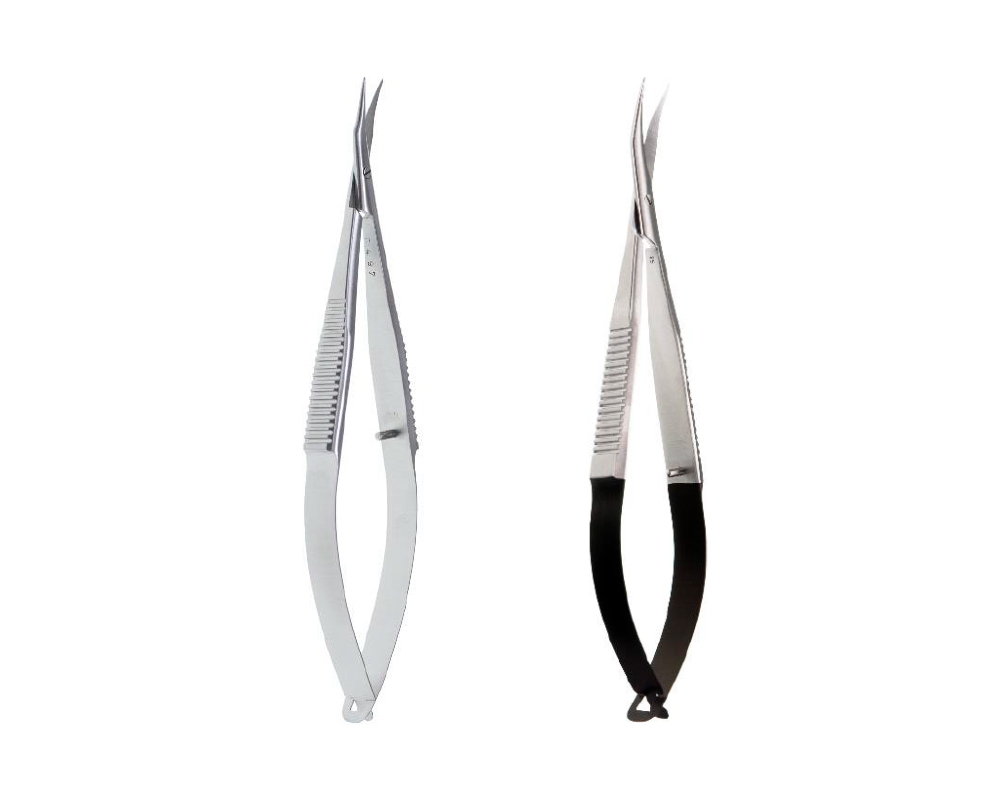

SUPERCUT SCISSORS
a1 medical offers as one of the only companies within the ophthalmic field SuperCut Scissors. Perfectly precise and non-traumatic cutting through any kind of tissue with minimal force requires a SuperCut Scissor.
SuperCut Scissors have
- a razor sharp cutting edge on one blade
- a standard edge combined with a micro-serration on the opposite blade
The micro-serration prevents tissue from slipping away during the cutting process.
