Founded in 1956 in Japan, Machida was one of the first manufacturers of flexible fiber-optic endoscopes, and helped pioneer the introduction of these technologies globally . Over the decades, Machida has built a strong reputation for innovative optics and reliable industrial and medical fiberscopes.
Machida’s flexible ENT fiberscopes are considered benchmarks. The pediatric model is one of the narrowest standard scopes (≈ 2.1 mm distal tip) and fully waterproof — ideal for minimal discomfort in children. Scopes are available in standard adult, slim-line, and pediatric sizes, compatible with detachable fiber-optic or portable light sources.
Machida products support eye specialists in achieving accurate diagnostics and effective treatments. Discover the range that combines Japanese innovation with clinical excellence.
We have become the proud and exclusive partner for all MACHIDA Endoscopes in Belgium & Luxembourg.
Find here an overview of all available models per medical discipline:

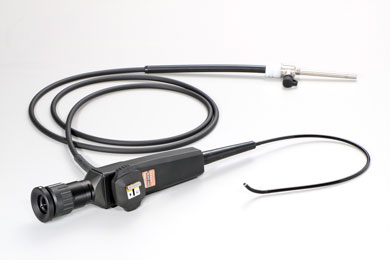

ENT-30PIII
Flexible nasopharyngo laryngoscope ø3.2mm, integrated cable
- The Legacy ENT Endoscope ø3.2mm = patient friendly size

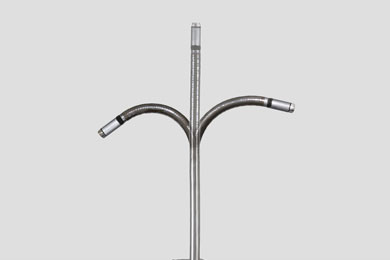

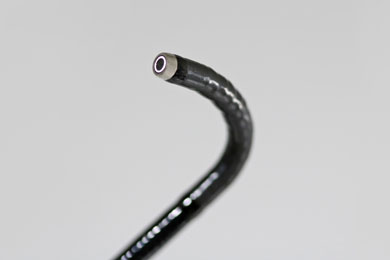

- Small & gentle angulation
- Optimum balance of flexibility & elasticity with smoothness & durability
- Light-weight body & light guide cable
- Integrated cable for lossless light transmission

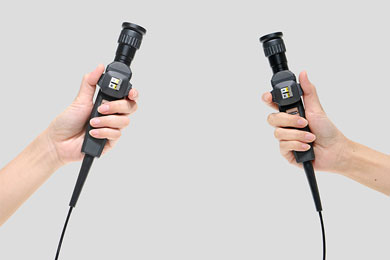

- Knob access from both sides: left or right handed

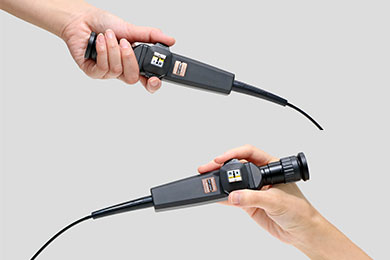

- Easy-to-grab body to suit your holding style
- Optical system to produce clear, sharp & faithful image

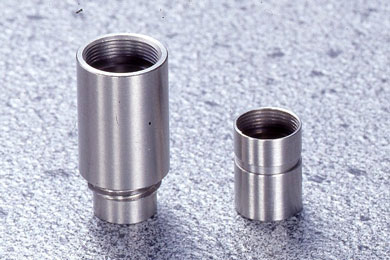

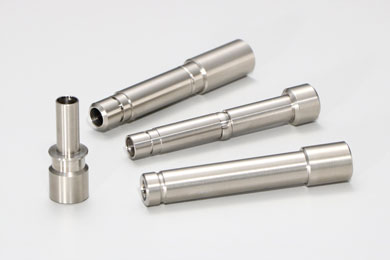

- Light guide plugs to connect your light source
- Fully immersible Sterilization compatibility

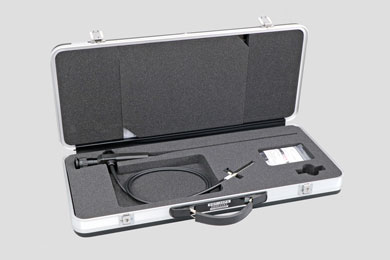

- Compact and luxury carry case
Specifications:
| Total Length : | 524 mm |
|---|---|
| Working Length : | 310 mm |
| Distal End ⌀ : | ø2.0 mm |
| Insertion Portion ⌀ : | ø2.1 mm |
| Field of View : | 75° |
| Angle of Deflection : | UP 130°/ DOWN 100° |
| Depth of Focus : | 3–50mm |

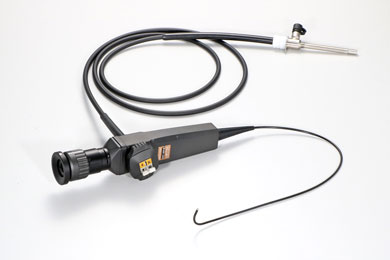

ENT-30FIII
Flexible nasopharyngo laryngoscope ø2.1mm, integrated cable

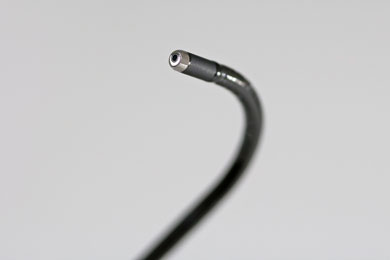

- Fine Insertion for Pediatric ø2.1mm = patient friendly size

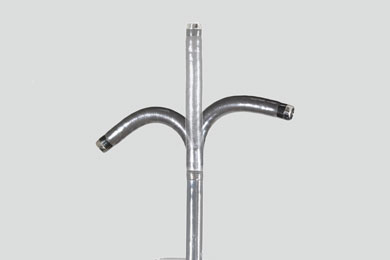

- Small & gentle angulation
- Optimum balance of flexibility, elasticity, smoothness & durability
- Light-weight body & light guide cable
- Integrated cable for lossless light transmission
- Knob access from both sides: left or right handed
- Easy-to-grab body to suit your holding style
- Optical system to produce clear, sharp & faithful image
- Light guide plugs to connect your light source
- Fully immersible Sterilization compatibility
- Compact and luxury carry case
Specifications:
| Total Length : | 524 mm |
|---|---|
| Working Length : | 310 mm |
| Distal End ⌀ : | ø2.0 mm |
| Insertion Portion ⌀ : | ø2.1 mm |
| Field of View : | 75° |
| Angle of Deflection : | UP 130°/ DOWN 100° |
| Depth of Focus : | 3–50mm |

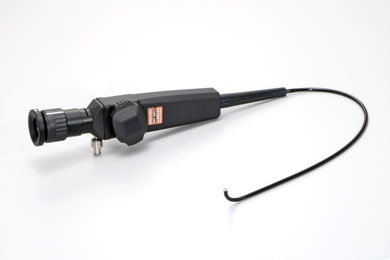

ENT-30PC
Portable Flexible nasopharyngo laryngoscope 3.2mm
- For Endoscopy Anywhere
- ø3.2mm = patient friendly size

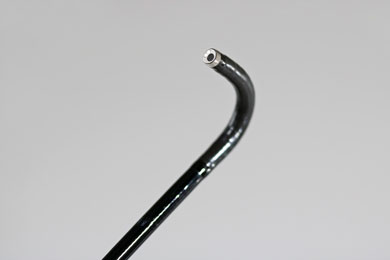

- Small & gentle angulation
- Optimum balance of flexibility, elasticity, smoothness & durability
- Light-weight body

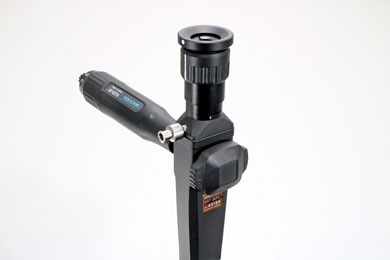

- Portable System with halogen 150W equivalent brightness
- Knob access from both sides: left or right handed
- Easy-to-grab body to suit your holding style

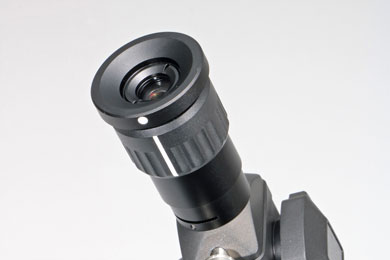

- Optical system to produce clear, sharp & faithful image
- Light post plugs to connect your cable
- Fully immersible Sterilization compatibility

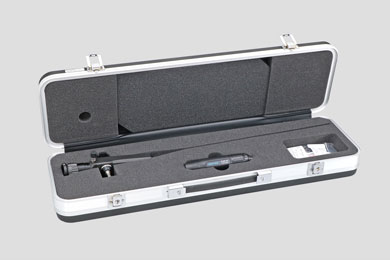

- Compact and luxury carry case
Specifications:
| Total Length : | 534 mm |
|---|---|
| Working Length : | 300 mm |
| Distal End ⌀ : | ø3.2 mm |
| Insertion Portion ⌀ : | ø3.2 mm |
| Field of View : | 80° |
| Angle of Deflection : | UP 130°/ DOWN 100° |
| Depth of Focus : | 3–50mm |

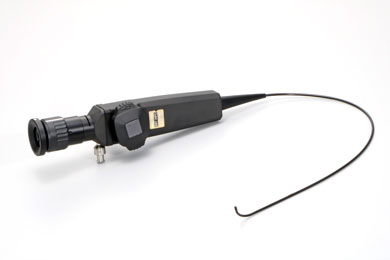

ENT-30FC
Portable Flexible nasopharyngo laryngoscope 2.1mm
- Additional Value to your Endoscopy
- ø2.1mm = patient friendly size
- Small & gentle angulation
- Optimum balance of flexibility, elasticity, smoothness & durability
- Light-weight body
- Portable light source available
- Knob access from both sides: left or right handed
- Easy-to-grab body to suit your holding style
- Optical system to produce clear, sharp & faithful image
- Light post plugs to connect your cable
- Fully immersible Sterilization compatibility
- Compact and luxury carry case
Specifications:
| Total Length : | 524 mm |
|---|---|
| Working Length : | 310 mm |
| Distal End ⌀ : | ø2.1 mm |
| Insertion Portion ⌀ : | ø2.0 mm |
| Field of View : | 75° |
| Angle of Deflection : | UP 130° / DOWN 100° |
| Depth of Focus : | 3–50mm |

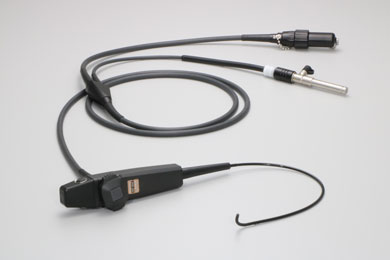

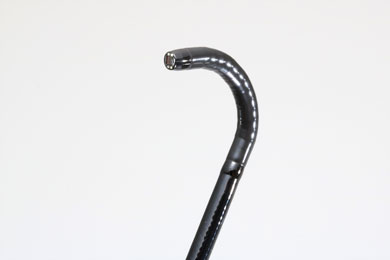

ENT-30VE
Video flexible nasopharyngo laryngoscope ø3.2 mm
- Proven Reliability & New Technology
- Chip-on-Tip in ø3.2mm
- Small & gentle angulation just like our fiberscopes
- Quality Image for doctors and patients

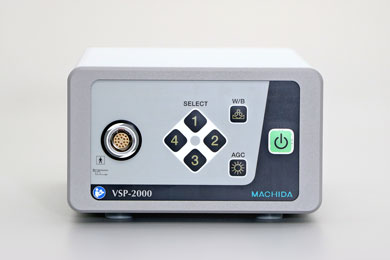

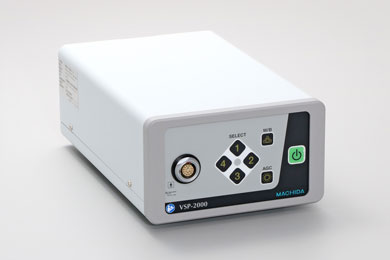

- Space saving control unit Simple interface
- Scene Select 1–4
- White Balance
- Auto Graphic Control

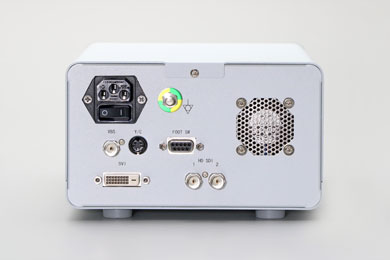

- Equipped with both digital and analog outputs
- Light guide plugs to connect your light source

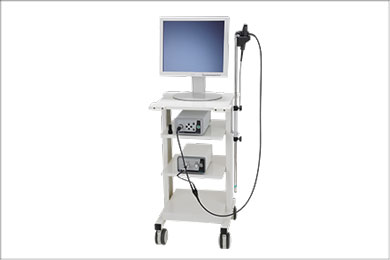

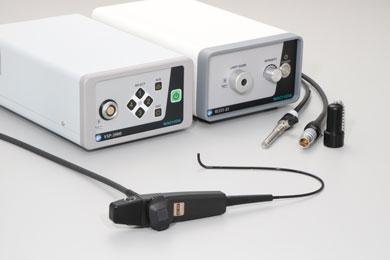

- Example system on trolley
Specifications:
| Working Length : | 300 mm |
|---|---|
| Distal End ⌀ : | ø3.2 mm |
| Insertion Portion ⌀ : | ø3.2 mm |
| Field of View : | 120° |
| Angle of Deflection : | UP 130° / DOWN 130° |
| Depth of Focus : | 3–50 mm |
| Universal Cord Length : | 2000 mm |

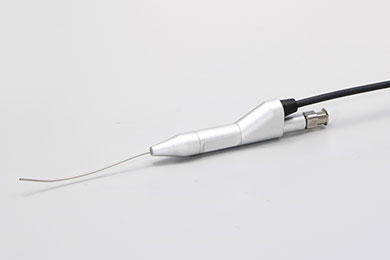

LAC-29FY-H
Dacryoscope (standard bent)
- Visual Approach to Lacrimal Disorder
- Helps to determine optimal treatment plan
- Helps for accurate re-canalization an intubation
- Incorporates irrigation channel to flush water
- Procedure video available on request (SEP&SGI)
Specifications:
| Insertion Tube Shape : | S-curved |
|---|---|
| Working Length : | 60 mm |
| Insertion Portion Diameter : | ø0.9 mm |
| Channel Diameter : | ø0.3 mm modified |
| Field of View : | 65° |
| Focus Distance : | Standard |
LAC-61NZ-HS
Dacryoscope (standard bent)
- Visual Approach to Lacrimal Disorder
- Helps to determine optimal treatment plan
- Helps for accurate re-canalization an intubation
- Incorporates irrigation channel to flush water
- Procedure video available on request (SEP&SGI)
Specifications:
| Insertion Tube Shape : | S-curved |
|---|---|
| Working Length : | 60 mm |
| Insertion Portion Diameter : | ø0.9 mm |
| Channel Diameter : | ø0.3 mm modified |
| Field of View : | 80° |
| Focus Distance : | Proximal |
Specifications:
| Insertion Tube Shape : | S-curved |
|---|---|
| Working Length : | 60 mm |
| Insertion Portion Diameter : | ø0.9 mm |
| Channel Diameter : | ø0.3 mm modified |
| Field of View : | 65° |
| Focus Distance : | Standard |

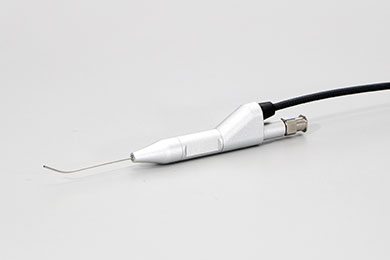

Specifications:
| Insertion Tube Shape : | Standard bent |
|---|---|
| Working Length : | 40 mm |
| Insertion Portion Diameter : | ø0.7 mm |
| Channel Diameter : | ø0.3 mm modified |
| Field of View : | 65° |
| Focus Distance : | Standard |
Specifications:
| Insertion Tube Shape : | Straight |
|---|---|
| Working Length : | 40 mm |
| Insertion Portion Diameter : | ø0.7 mm |
| Channel Diameter : | ø0.3 mm modified |
| Field of View : | 65° |
| Focus Distance : | Standard |
Specifications:
| Insertion Tube Shape : | S-curved |
|---|---|
| Working Length : | 60 mm |
| Insertion Portion Diameter : | ø0.9 mm |
| Channel Diameter : | ø0.3 mm modified |
| Field of View : | 80° |
| Focus Distance : | Proximal |

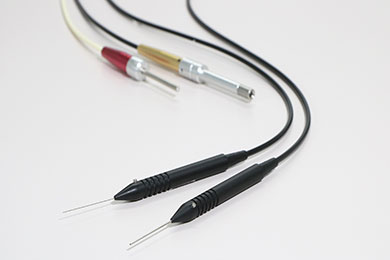

Vitreoscope
- Intraoculascope with different sizes: 20G, 23G, 25G & 27G
- Visualize outside of microscopic view
- Visualize behind opaque
- Observation of the optic disc
- Retinal hole (Laser photocoagulation)
- Trabecular meshwork
- Pars plana
- Visualize the site at close proximity
- Keep you oriented during endoscopy
- Sharp image with evenly aligned fibers

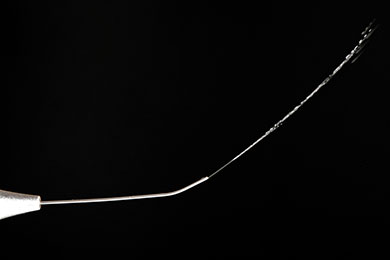

- Incorporates irrigation channel to flush water
Specifications:
| Model : |
|---|
| Size : |
| Insertion Portion Diameter : |
| Working Length : |
| Field of View : |
| Depth of Focus : |
| VIT-20MFY-H / VIT-20MNZ-HS |
| 20G |
| ø0.9 mm |
| 30 mm |
| 65°/ 75° |
| 5 mm– / 2 mm– |
| VIT-23MFY-H |
| 23G |
| ø0.6 mm |
| 30 mm |
| 65° |
| 5 mm– |
| VIT-25MFY-H / VIT-25MFY-S |
| 25G |
| ø0.5 mm |
| 30 mm |
| 65° |
| 5 mm– |
| VIT-27MFY-S |
| 27G |
| ø0.4 mm |
| 30 mm |
| 65° |
| 5 mm– |

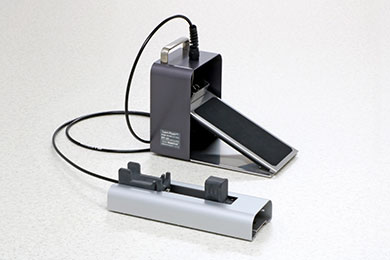

Specifications:

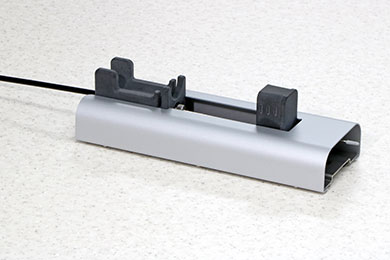

| Dimensions (Syringe Holder) : | W220 × H64 × D80 mm |
|---|---|

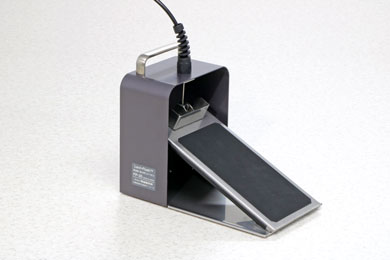

| Dimensions (Pedal) : | W212 × H150 × D125 mm |
